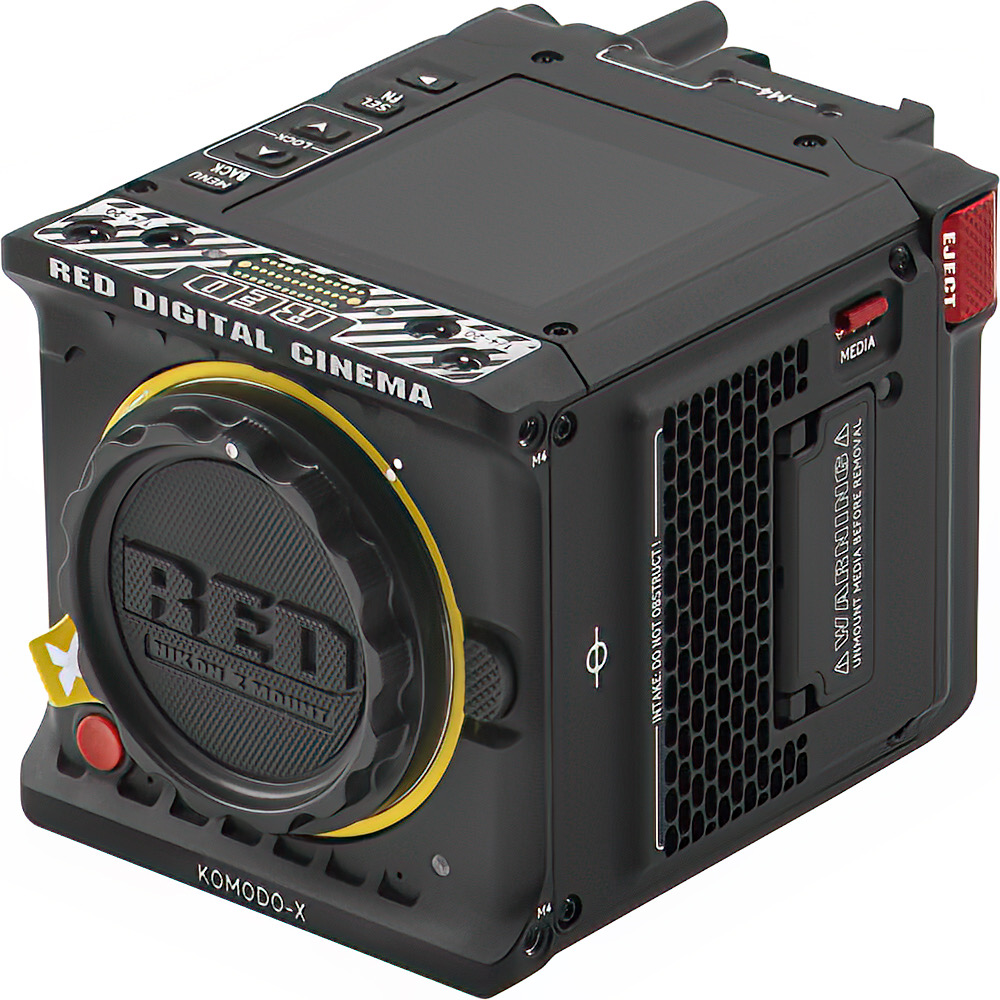

The Komodo-X is a Super35 6K video camera
- Sensor: 19.9mp CMOS
- 27.03 x 14.26mm (Super35)
- global shutter
- 16.5+ stops dynamic range
- no sensor-based IS
- ISP:
- Mount: Nikon Z, locking
- F-mount lens usage via optional FTZ adapter
- PL-mount adapter available
- Pixels:
- Maximum size: 6144 x 3240 (6K DCI)
- Aspect ratio: 17:9, 16:9, 2:1, 2.4:1
- Video Frames:
- Maximum data rate: 560MB/s
- 6K DCI up to 80 fps
- 6K DCI anamorphic (2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x)
- 5K DCI up to 96 fps
- 4K DCI up to 120 fps
- 2K DCI up to 240 fps
- Video Recording formats:
- REDCODE HQ, MQ, LQ, ELQ
- REDCODE RAW
- Apple ProRes 4444HQ, 4444, 422HQ, 422, and 422LT
- Supports 33x33x33 3D LUTs
- Audio:
- uncompressed, 24-bit 48Khz
- dual channel microphones
- dual channel (mi/line/+48V) 5-pin input (lockable)
- Shutter:
- electronic: 1/23.98 sec to 1/8000 sec
- Shutter angle 1 to 360°
- Exposure:
- Manual
- 7 White Balance presets, direct Kelvin from 1700K to 10000K
- electronic ND filter via ND adapter
- Focus:
- Autofocus, Phase detect
- Rear Display:
- 2.9” touch LCD flat on camera top
- 1440x1440 pixels
- Optional 7” 1920x1200 pixel DSMC3 Touch LCD
- Additional Interfaces/Connections:
- 1B DC-In (power)
- USB Type C
- 12G SDI (up to 4K/60P output)
- 2.4/5Ghz Wi-Fi
- 9-pin Genlock/Timecode/RS232 control
- Media:
- one CFexpress Type B slot
- Power:
- Direct 11-17V via 6-pin DC-IN
- Micro V-Lock battery interface
- Nano-V battery, 3300mAh/49Wh
- Micro-V battery, 6600mAh/98Wh
- M4 mounting screws
- Size:
- 4” (101.26mm) wide
- 3.8" (95.26mm) tall
- 5.1” (129.37mm) deep
- 41.9 ounces (1188g) without mount cap, card, or battery
- Price: US$6995 body only
- Current Firmware:
- Announced:
- Nikon lenses for the RED Komodo-X
- RED'S Web page for the Komodo-X
